ORIGINAL RESEARCH ARTICLE

Microstructure and mechanical properties of additively manufactured GH4099 superalloy

Zitian Zhao1 ,  Chuanzhi Jia1 ,  Yunlong Li1* ,  Xuehao Gao3 ,  Zhanyong Zhao1 ,  Jianhong Wang1* ,  Wei Fan4 ,  Peikang Bai1
Show Less
1 Department of Materials Science and Engineering/North University of China, Taiyuan, Shanxi, China
2 Suzhou Laboratory, Suzhou, Jiangsu, China
3 Ningbo Institute of Materials Technology and Engineering/Chinese Academy of Sciences, Ningbo, Zhejiang, China
4 State Key Laboratory of Solidification Processing/Northwestern Polytechnical University, Xi’an, Shaanxi, China
MSAM 2025, 4(4), 25220047 https://doi.org/10.36922/MSAM025220047
Received: 31 May 2025 | Accepted: 14 July 2025 | Published online: 17 September 2025
(This article belongs to the Special Issue Additive Manufacturing of Materials for Extreme Environments)
© 2025 by the Author(s). This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution 4.0 International License ( https://creativecommons.org/licenses/by/4.0/ )
Download PDF
XML
Cite
Abstract

GH4099, a nickel-based superalloy, is widely used in high-temperature applications. Specimens were fabricated using laser-directed energy deposition (LDED) and conventional forging for comparison. Their microstructure and mechanical properties were examined in the as-fabricated condition and after heat treatment consisting of solutionizing at 1,100°C for 2 h followed by aging at 700°C for 8 h. LDED samples exhibited coarse, columnar grains aligned with the build direction, whereas forged samples showed fine, uniform equiaxed grains. After heat treatment, all samples showed significantly reduced grain size. Uniform Ni3(Al,Ti) precipitates formed at grain boundaries and within grains, contributing to boundary pinning and inhibition of grain growth. This microstructural refinement enhanced thermal stability and impeded dislocation motion. As a result, heat treatment markedly improved both hardness and tensile strength in all specimens. In particular, the heat-treated LDED specimen (LDED-3) achieved a tensile strength of 901.6 MPa and a hardness of 404.7 HV0.2, whereas the forged specimen (F-3) reached 1,176.3 MPa and 397.1 HV0.2, respectively. The forged sample displayed the highest tensile strength, while the heat-treated LDED specimen exhibited the highest hardness. These findings demonstrate that optimized heat treatment can significantly refine the microstructure and improve the performance of GH4099 alloy, providing valuable guidance for the production of high-performance nickel-based superalloy components for high-temperature applications.

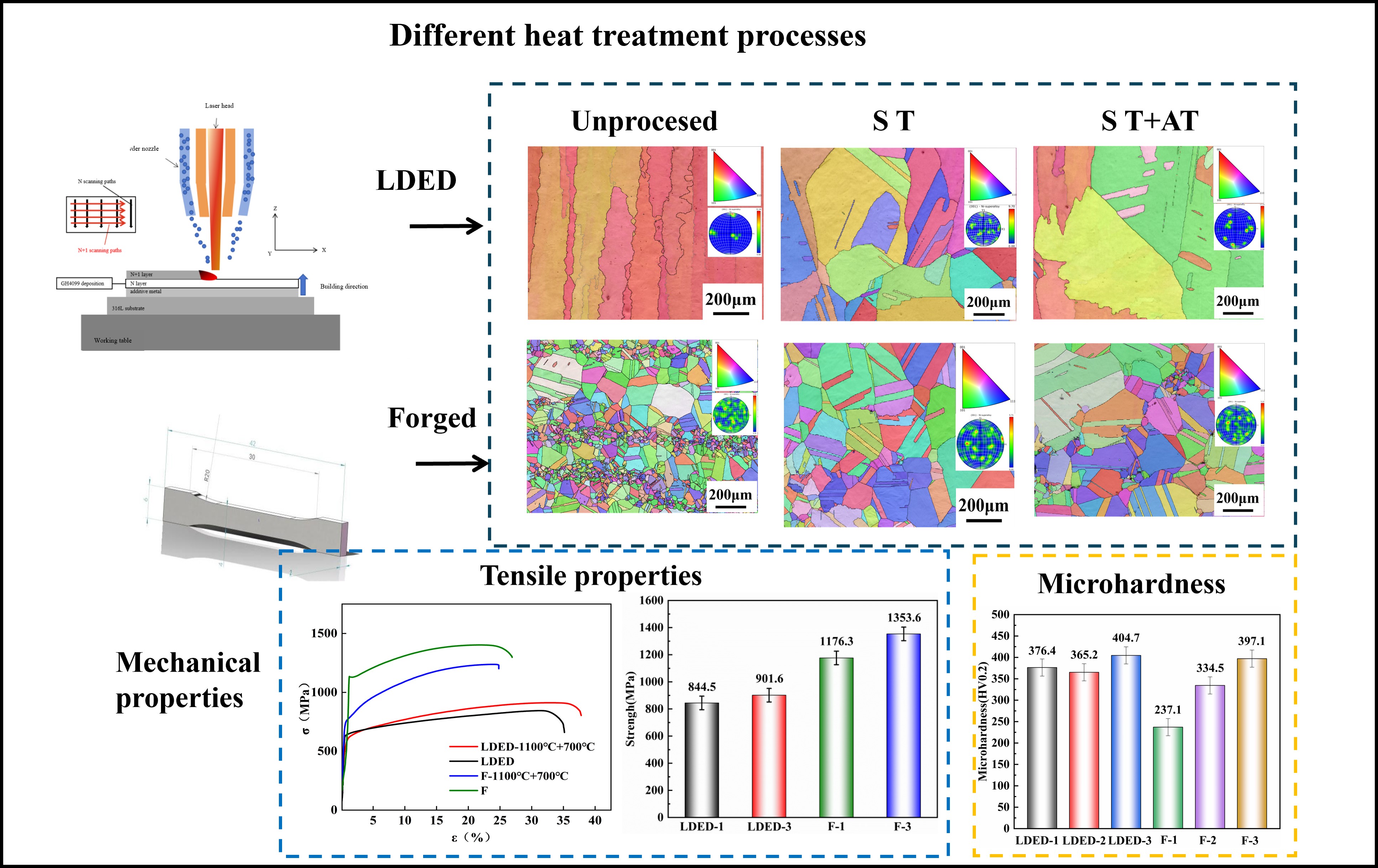

Graphical abstract
Keywords
Laser-based directed energy deposition
Nickel-based superalloy
Heat treatment
Microstructure
Mechanical properties
Funding
This work was financially supported by the National Natural Science Foundation of China (grant number 52405433), the Fundamental Research Program of Shanxi Province (grant number 202403021212119), the China Postdoctoral Science Foundation (grant number 2024M763031), and Shanxi Provincial Key Research and Development Program (grant number 202102050201009); Shanxi Scholarship Council of China (grant number 2024-116).
Conflict of interest
The authors declare that they have no competing interests.
References
  1. Zhang M, Zhang B, Wen Y, Qu X. Research progress on selective laser melting processing for nickel-based superalloy. Int J Miner Metall Mater. 2022;29:369-388. doi: 10.1007/s12613-021-2331-1
  2. Zhang X, Liang Y, Yi F, et al. Anisotropy in microstructure and mechanical properties of additively manufactured Ni-based GH4099 alloy. J Mater Res Technol. 2023;26:6552-6564. doi: 10.1016/j.jmrt.2023.09.038
  3. Thompson SM, Bian L, Shamsaei N, Yadollahi A. An overview of direct laser deposition for additive manufacturing; Part I: Transport phenomena, modeling and diagnostics. Addit Manuf. 2015;8:36-62. doi: 10.1016/j.addma.2015.07.001
  4. Ngo TD, Kashani A, Imbalzano G, Nguyen KTQ, Hui D. Additive manufacturing (3D printing): A review of materials, methods, applications and challenges. Compos B Eng. 2018;143:172-196. doi: 10.1016/j.compositesb.2018.02.012
  5. Ren YM, Lin X, Fu X, Tan H, Chen J, Huang WD. Microstructure and deformation behavior of Ti-6Al-4V alloy by high-power laser solid forming. Acta Mater. 2017;132:82-95. doi: 10.1016/j.actamat.2017.04.026
  6. Xu W, Brandt M, Sun S, et al. Additive manufacturing of strong and ductile Ti-6Al-4V by selective laser melting via in situ martensite decomposition. Acta Mater. 2015;85:74-84. doi: 10.1016/j.actamat.2014.11.028
  7. Wang Z, Beese AM. Effect of chemistry on martensitic phase transformation kinetics and resulting properties of additively manufactured stainless steel. Acta Mater. 2017;131:410-422. doi: 10.1016/j.actamat.2017.04.022
  8. Keist JS, Palmer TA. Role of geometry on properties of additively manufactured Ti-6Al-4V structures fabricated using laser based directed energy deposition. Mater Des. 2016;106:482-494. doi: 10.1016/j.matdes.2016.05.045
  9. Jones J, Whittakar M, Buckingham R, Johnston R, Bache M, Clark D. Microstructural characterisation of a nickel alloy processed via blown powder direct laser deposition (DLD). Mater Des. 2017;117:47-57. doi: 10.1016/j.matdes.2016.12.062
  10. Qin SX, Zhao RR, Zhang HB, Liu J, Lou SM. Influence of long-term thermal exposure on γ’-phase of GH99 alloy. Trans Mater Heat Treat. 2017;38(2):55-60.
  11. Hu YL, Lin X, Li YL, et al. Effect of heat treatment on the microstructural evolution and mechanical properties of GH4099 additive-manufactured by directed energy deposition. J Alloys Compd. 2019;800:163-173. doi: 10.1016/j.jallcom.2019.05.348
  12. Hu YL, Lin X, Song K, Jiang XY, Yang HO, Huang WD. Effect of heat input on cracking in laser solid formed DZ4125 superalloy. Opt Laser Technol. 2016;86:1-7. doi: 10.1016/j.optlastec.2016.06.008
  13. Hu YL, Lin X, Zhang SY, et al. Effect of solution heat treatment on the microstructure and mechanical properties of Inconel 625 superalloy fabricated by laser solid forming. J Alloys Compd. 2018;767:330-344. doi: 10.1016/j.jallcom.2018.07.087
  14. Nie P, Ojo OA, Li Z. Numerical modeling of microstructure evolution during laser additive manufacturing of a nickel-based superalloy. Acta Mater. 2014;77:85-95. doi: 10.1016/j.actamat.2014.05.039
  15. Hönnige JR, Colegrove PA, Ahmad B, et al. Residual stress and texture control in Ti-6Al-4V wire + arc additively manufactured intersections by stress relief and rolling. Mater Des. 2018;150:193-205. doi: 10.1016/j.matdes.2018.03.065
  16. Marchese G, Basile G, Bassini E, et al. Study of the microstructure and cracking mechanisms of hastelloy X produced by laser powder bed fusion. Materials (Basel). 2018;11:106. doi: 10.3390/ma11010106
  17. Kakehi K, Banoth S, Kuo YL, Hayashi S. Effect of yttrium addition on creep properties of a Ni-base superalloy built up by selective laser melting. Scr Mater. 2020;183:71-74. doi: 10.1016/j.scriptamat.2020.03.014
  18. Zhibo HAO, Changchun GE, Xinggang LI, Tian T, Chonglin JI. Effect of heat treatment on microstructure and mechanical properties of nickel-based powder metallurgy superalloy processed by selective laser melting. Acta Metall Sin. 2020;56:1133-1143. doi: 10.11900/0412.1961.2019.00365
  19. Chandra S, Radhakrishnan J, Huang S, Wei S, Ramamurty U. Solidification in metal additive manufacturing: Challenges, solutions, and opportunities. Prog Mater Sci. 2025;148:101361. doi: 10.1016/j.pmatsci.2024.101361
  20. James LA. The effect of grain size upon the fatigue-crack propagation behavior of alloy 718 under hold-time cycling at elevated temperature. Eng Fract Mech. 1986;25:305-314. doi: 10.1016/0013-7944(86)90127-x
  21. Jiang R, Everitt S, Lewandowski M, Gao N, Reed PA. Grain size effects in a Ni-based turbine disc alloy in the time and cycle dependent crack growth regimes. Int J Fatigue. 2014;62:217-227. doi: 10.1016/j.ijfatigue.2013.07.014
  22. Cordero ZC, Knight BE, Schuh CA. Six decades of the hall-petch effect - a survey of grain-size strengthening studies on pure metals. Int Mater Rev. 2016;61:495-512. doi: 10.1080/09506608.2016.1191808
  23. Zhang HM, Peng J, Pan HJ, et al. Improved tensile properties of selective laser melted GH4099 superalloy assisted by appreciable work hardening ability. Mater Charact. 2024;214:114079. doi: 10.1016/j.matchar.2024.114079
  24. Mulheran PA. Theory of the size distribution in three-dimensional grain growth. Phys Rev E. 1995;51:R3803-R3806. doi: 10.1103/physreve.51.r3803
  25. Xia PC, Xie K, Cui HZ, Yu JJ. Influence of heat treatment on γ’ phase and property of a directionally solidified superalloy. High Temp Mater Process. 2018;37:271-276. doi: 10.1515/htmp-2016-0060
  26. Tian SG, Xie J, Zhou XM, et al. Creep behavior and influencing factors of FGH95 nickel base superalloy. Rare Met Mater Eng. 2011;40:807-812. doi: 10.5772/21879
  27. Dinda GP, Dasgupta AK, Mazumder J. Laser aided direct metal deposition of Inconel 625 superalloy: Microstructural evolution and thermal stability. Mater Sci Eng A. 2009;509: 98-104. doi: 10.1016/j.msea.2009.01.009
  28. Li L, Zhu X, Tian F, Chen Y, Liu Q. Effect of annealing treatment on mechanical and fatigue properties of Inconel 718 alloy melted by selective laser melting. Matéria (Rio J). 2022;27:e20220214. doi: 10.1590/1517-7076-rmat-2022-0214
  29. Ding J, Jiang S, Li Y, et al. Microstructure evolution behavior of Ni3Al (γ’) phase in eutectic γ-γ’ of Ni3Al-based alloy. Intermetallics. 2018;98:28-33. doi: 10.1016/j.intermet.2018.04.010
  30. Yuan Z, Lin D, Cui Y, et al. Research progress on the phase transformation behavior, microstructure and property of NiTi based high temperature shape memory alloys. Rare Met Mater Eng. 2018;47:2269-2274.
  31. Yang G, Song H, Qin L, Bian H, Wang W, Ding L. Thermal behavior and microstructure evolution of titanium alloy by laser deposition. Rare Met Mater Eng. 2016;45:2598-2604. doi: 10.12442/j.issn.1002-185X.20220673
  32. Zhang X, Zhou X, Yao B, Yu J, Wang L. Comparison of thermal and mechanical properties of γ’-Pt3Al and γ’-Ni3Al phases: A first principles study. J Cent South Univ. 2022;29:32-42. doi: 10.1007/s11771-022-4931-y
  33. Bian H, Zhai Q, Qu S, Yang G, Wang W, Wang W. Effect of aging heat treatment on microstructure and properties of laser deposition repaired GH738 alloy. Rare Met Mater Eng. 2019;48:317-322.
  34. Kun S, Yuan X, Qing Y, Wei Z. Microstructure evolution and mechanical properties of TC6 alloy with different original microstructures during high temperature deformation. Rare Met Mater Eng. 2012;41:406-412. doi: 10.12442/j.issn.1002-185X.012.41.3.406412
  35. Shi Z, Xu G, Liu N, et al. Effect of C content on microstructure and mechanical properties of GH4169 alloy. Rare Met Mater Eng. 2023;52:2926-2934.
